Full Auto Brinell Hardness Tester with Motorized Lifting System and Indentation Video
Features of AutoBrin AB-3000:
Equips with OS Win10, and already installed BrinScan V3.0 Auto Brinell Measurement software.

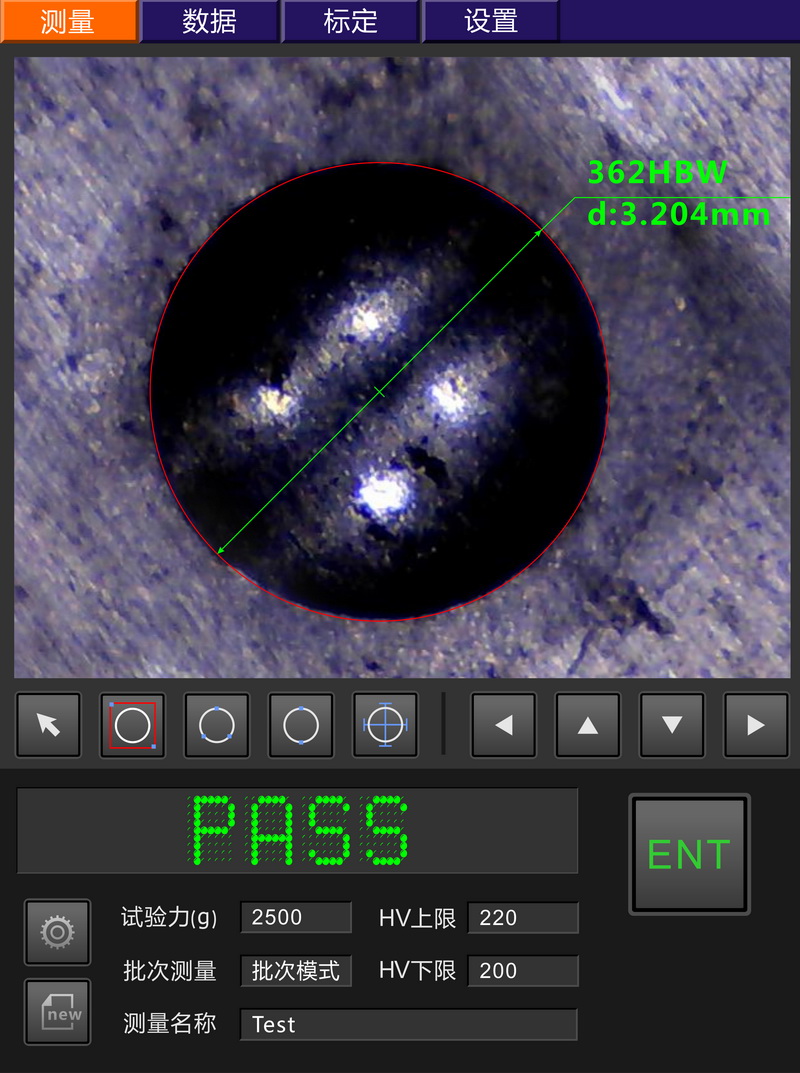

Apply vision measurement technology, one key operation, realize auto loading, dwell, unloading and indentation measurement.
AutoBrin AB-3000 can display data statistics, hardness conversion, limitation setting, graph, measurement mode setting, etc.
Loading by high accuracy force sensor , and can compensate force loss during loading by micro central processing unit.
Technical Data:
| Name | Full Auto Brinell Hardness Tester |
| Model | AutoBrin AB-3000 |
| Code# | 831-160 |
| Loading Force | Kgf | 62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf |
| N | 612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N |
| Brinell Range | (8-650) HBW |
| Hardness Resolution | 0.1HBW |
| Measurement | Automatically |
| Objective | 1x and 2x |
| Software | Win 10 OS, MS Office Brinell Measurement Software BrinScan V3.0 |
| Vertical Space | 260mm |
| Horizontal Space | 150mm |
| Dimension | 622x313x992mm |
| Gross/Net Weight | 180Kg/150Kg |
| Power Supply | AC 220V/110V±5%,50~60 Hz |
| Conform Standard | GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243 |
| Accuracy |
| Hardness Range | Permitted Error | Repeatability |
| HBW≤ 125 | ≤± 3.5％ | ≤ 3.5％ |
| 125＜HBW≤225 | ≤± 2.5％ | ≤ 3.0％ |
| HBW＞ 225 | ≤± 2.0％ | ≤ 2.5％ |
Standard Delivery:
| Name | Code# | Name | Code# | Name | Code# |
| Main Unit | 831-160 | Ball Indenter Ø10mm | #831-411 | Test Anvil Ø200mm | #831-551 |
| Objective 1x | #831-321 | Ball Indenter Ø5mm | #831-421 | Test Anvil Ø60mm | #831-501 |
| Objective 2x | #831-331 | Ball Indenter Ø2.5mm | #831-431 | “V”Shape Test Anvil Ø55mm | #831-521 |
| BrinScan | | Power Cable | #831-801 | Accessory Case | #831-901 |
| Hardness Block HBW 5/750 | #831-611 | | | Operation Manual | AutoBrin AB-3000 |
| Hardness Block HBW 10/3000 | #831-601 | Anti-Dust Cover | #831-911 | Quality Certificate | AutoBrin AB-3000 |
